How to create a server template for VMM, Hyper-V or Vmware with MDT 2013

1) install ADK for WIndows 8.1

Download ADK from : http://www.microsoft.com/en-US/download/details.aspx?id=39982

2) Install MDT 2013

Download MDT from: https://www.microsoft.com/en-us/download/details.aspx?id=40796

3) Create a Deployment Share

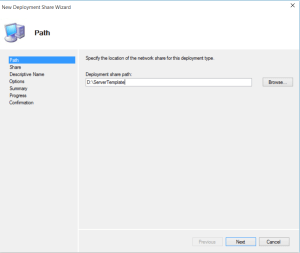

Enter the place for the Deployment Share

Click Next

Enter the Deployment Share name

Click Next

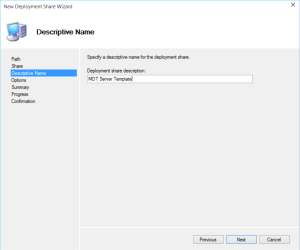

Enter the Deployment Share discription

Click Next

Click Finish

4) Setup Deployment Share

Follow this step by step

4a) Create OS

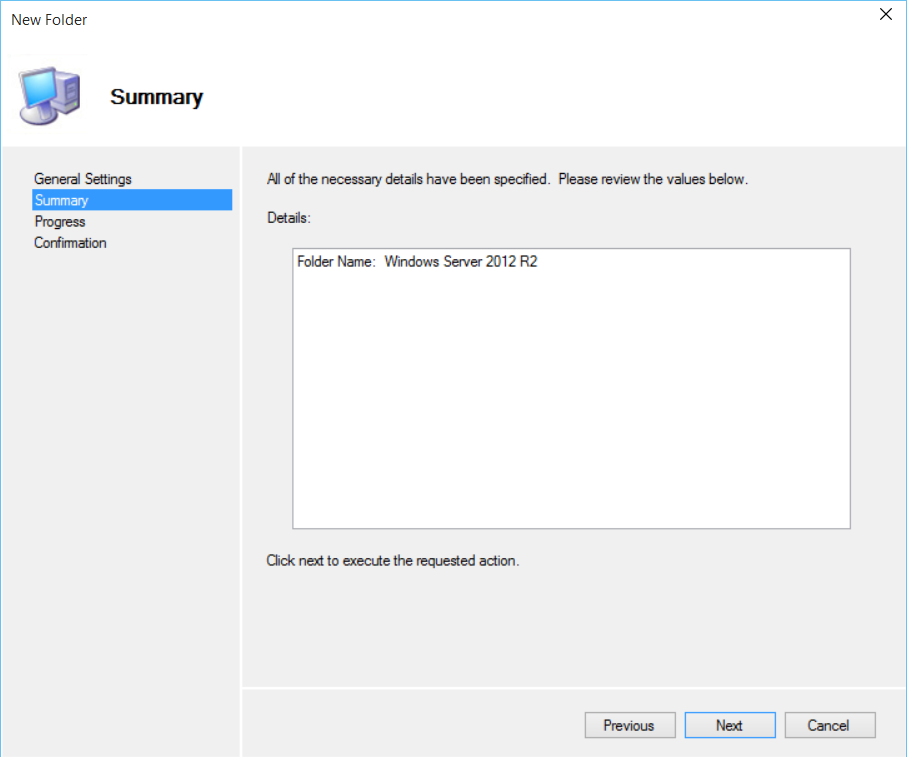

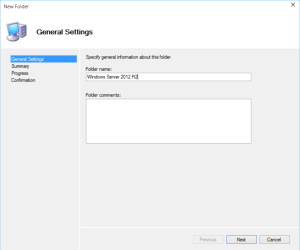

Create a folder for the OS in MDT

Click Next

Click Finish

Mount OS ISO

Import OS

Click Next

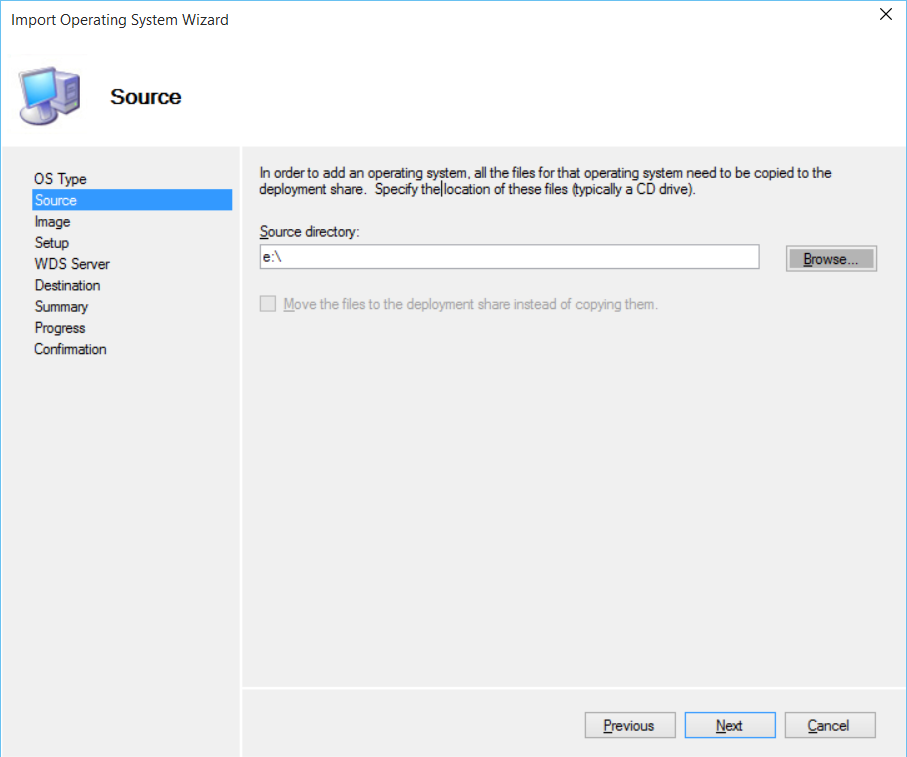

Enter the drive letter that the OS ISO is mounted on

Click Next

Change name

Click Next

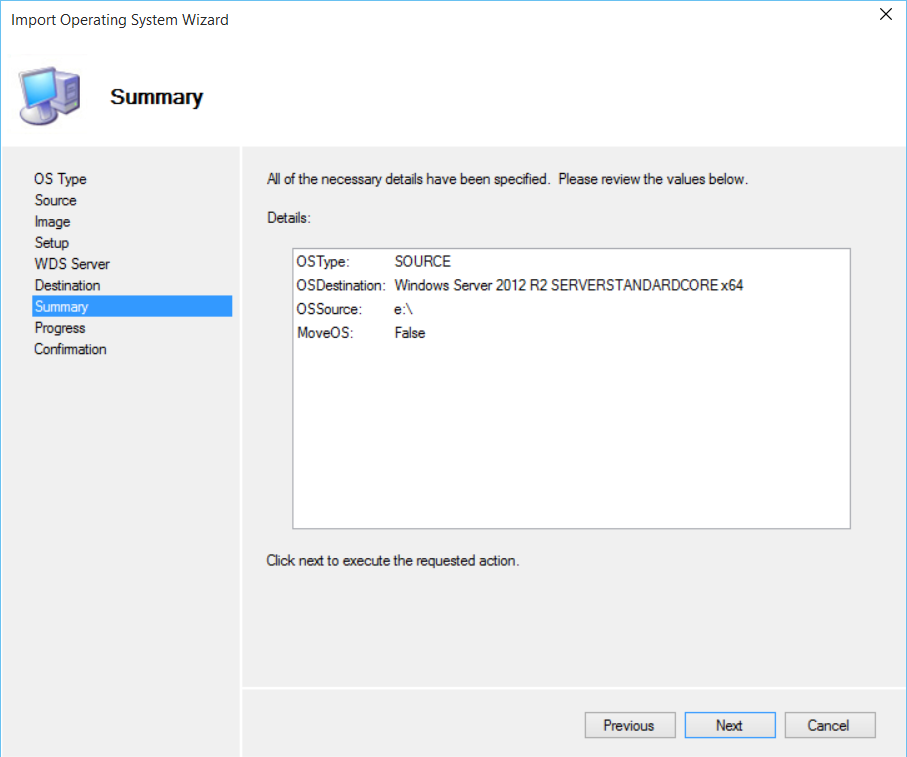

Click Finish

4b) Create Task Sequence for Server Template

Create a Task Sequence Folder

Click Next

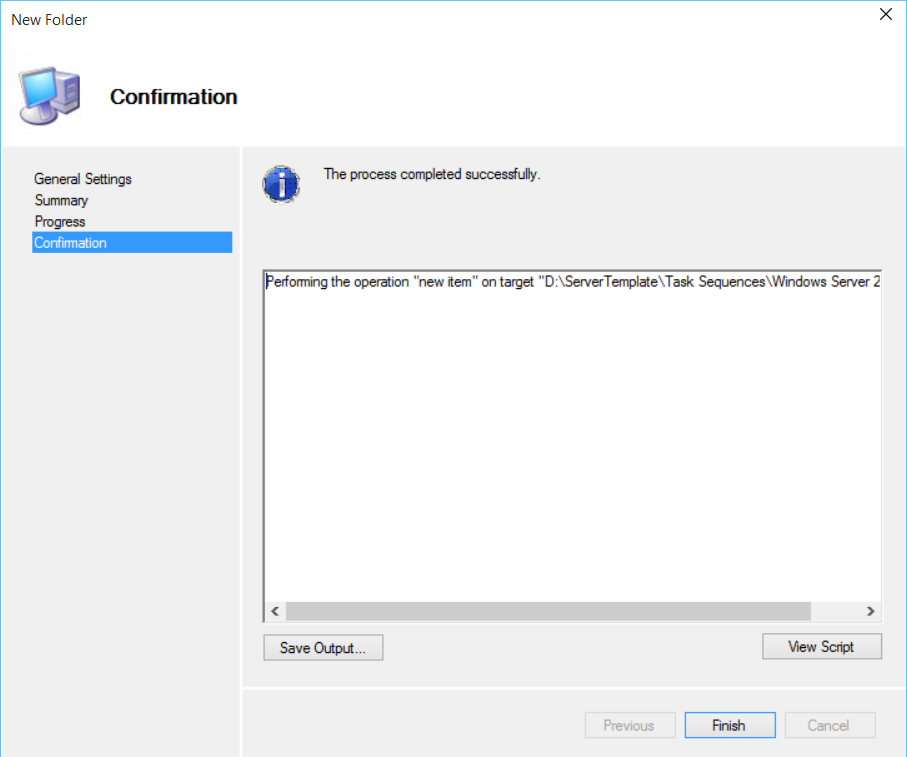

Click Finish

Create Server template Task Sequence

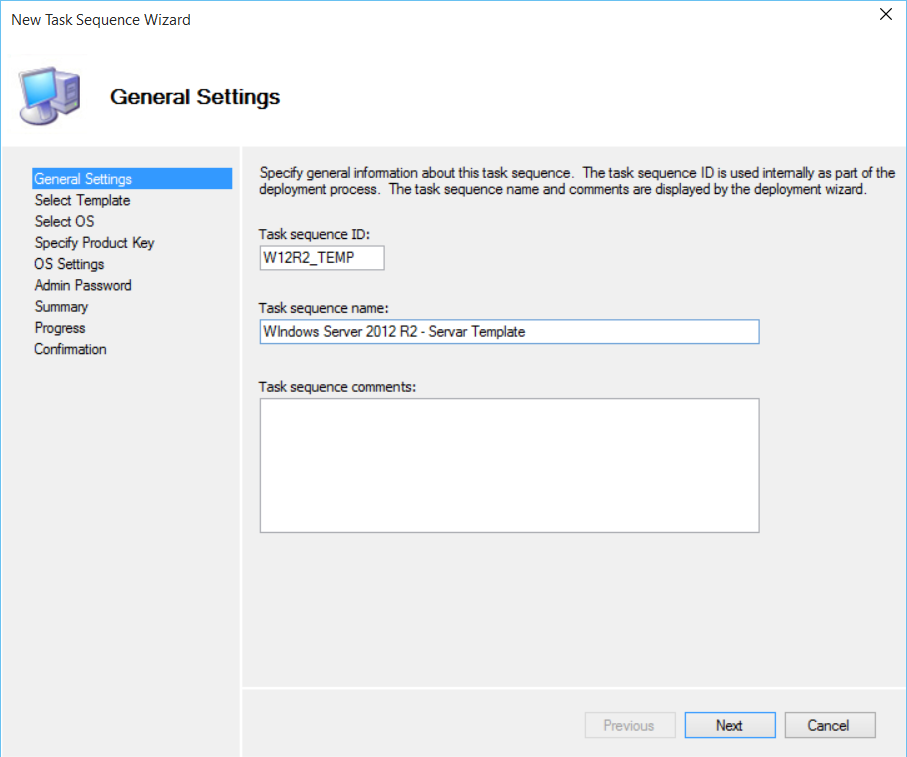

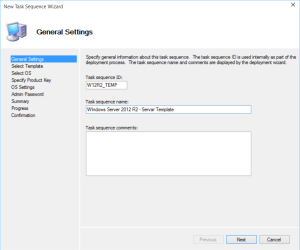

Give a unik Task Sequence ID

Give a Task Sequence Name

Click Next

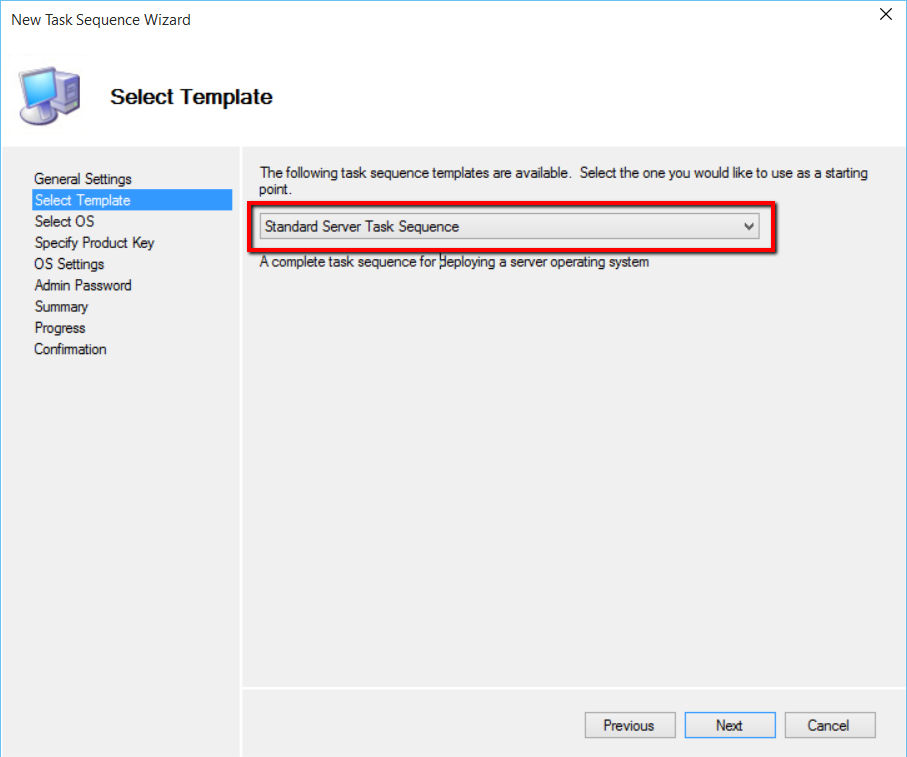

Choose “Standard Server Task Sequence”

Click Next

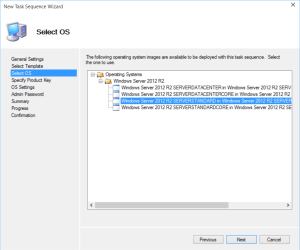

Choose Operating System

Click Next

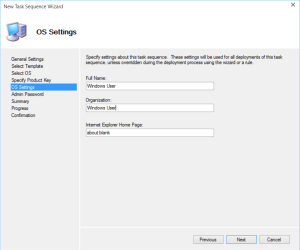

Enter Organization

Click Next

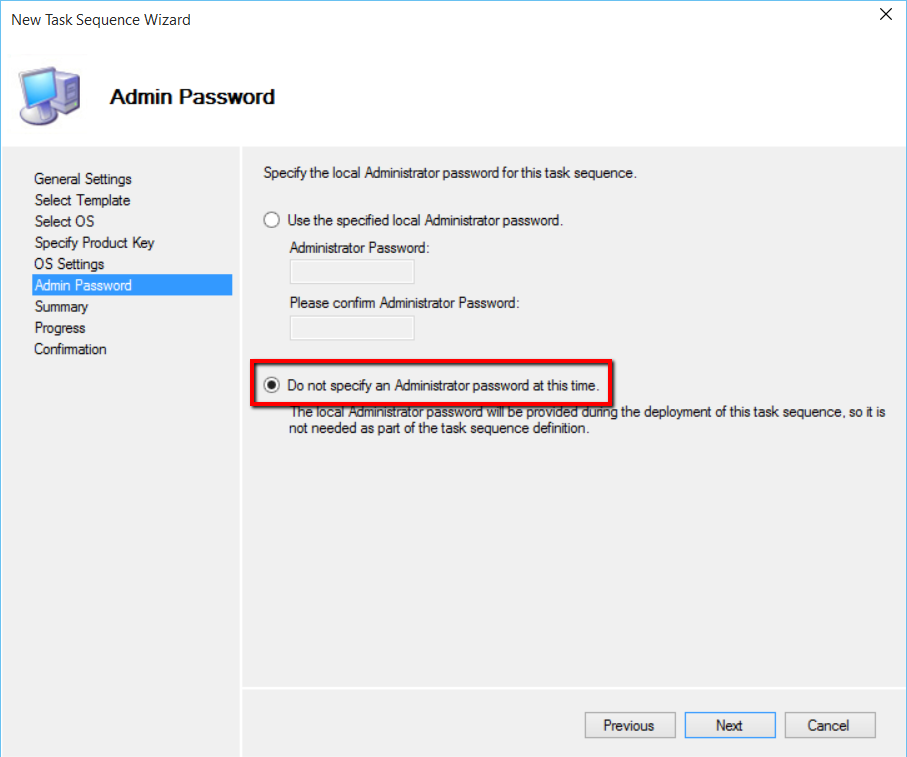

Enter a Admin Password or choose “Do not specify an Administrator password at this time”

Click Next

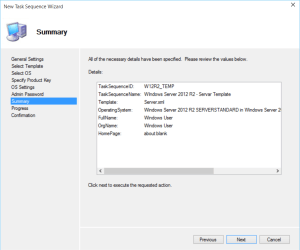

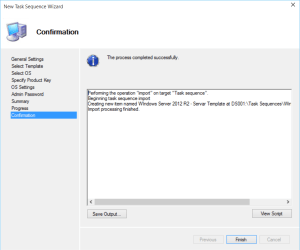

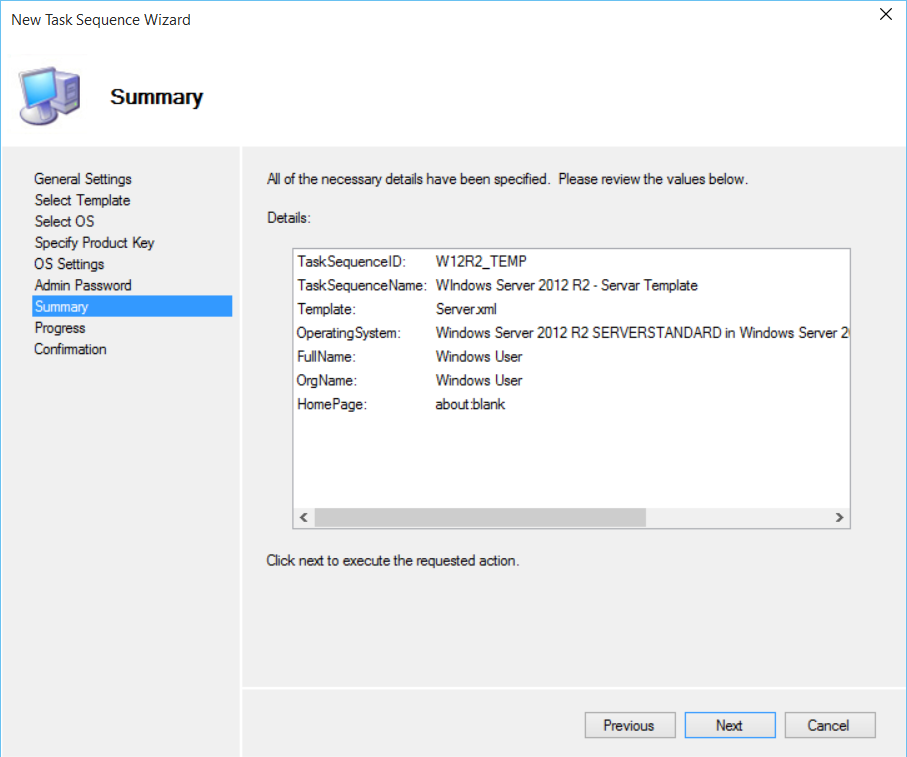

Click Finish

Edit Server template Task Sequence

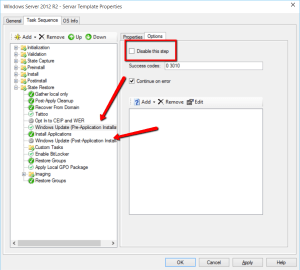

Enable Windows update by removing the “DIsable this Step”

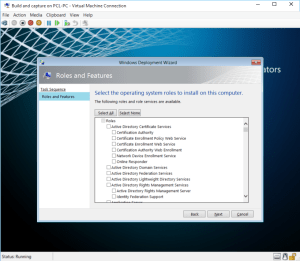

Add “Install Roles and Features” For the server OS

Create a folder for Cleanup Image – for cleaning up the image for installed patches.

Create 3 steps:

Restart Computer
Run Command Line : DISM.exe /online /Cleanup-Image /StartComponentCleanup /ResetBase
Restart Computer

5) Create a MDT “Media Share”

Create a folder on your disk fx. “D:\ServerTemplate_ISO”

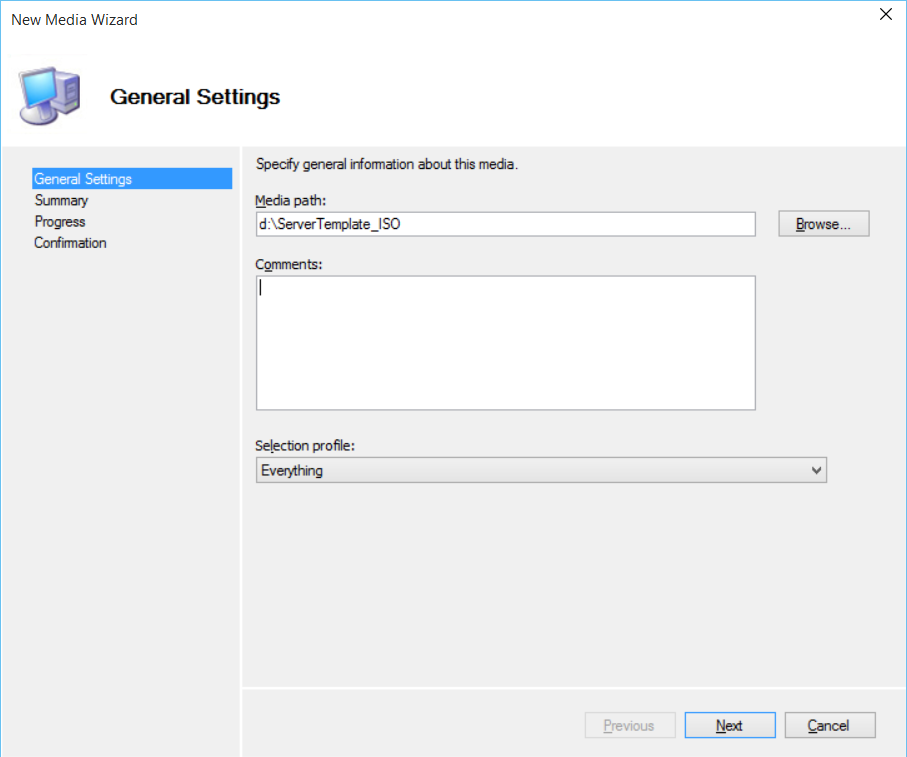

Enter the path for your Media Folder

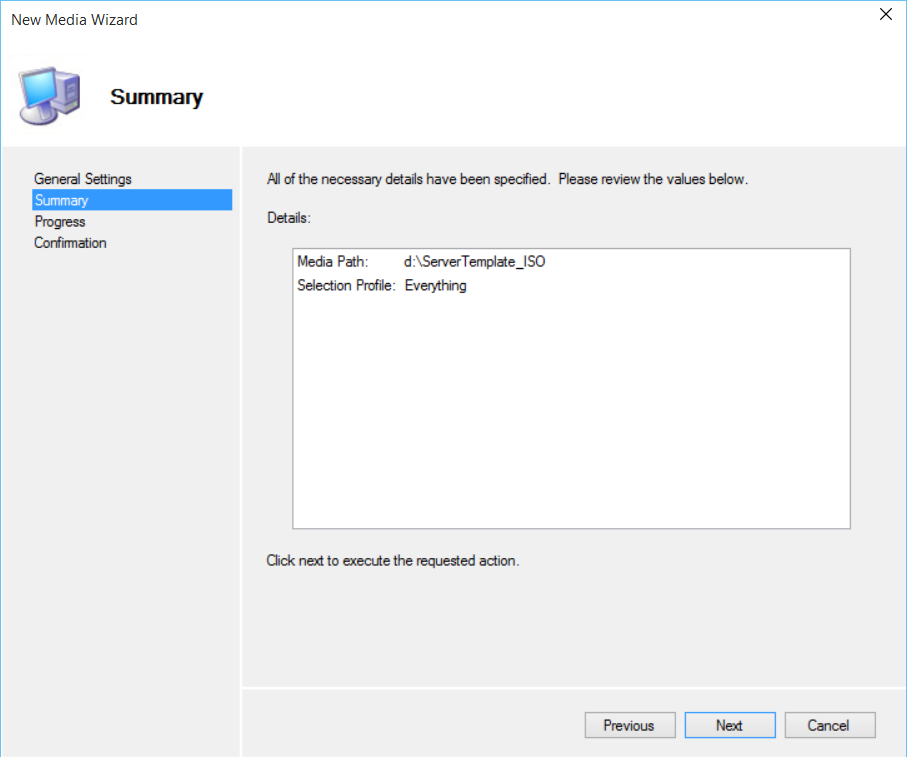

Click Next

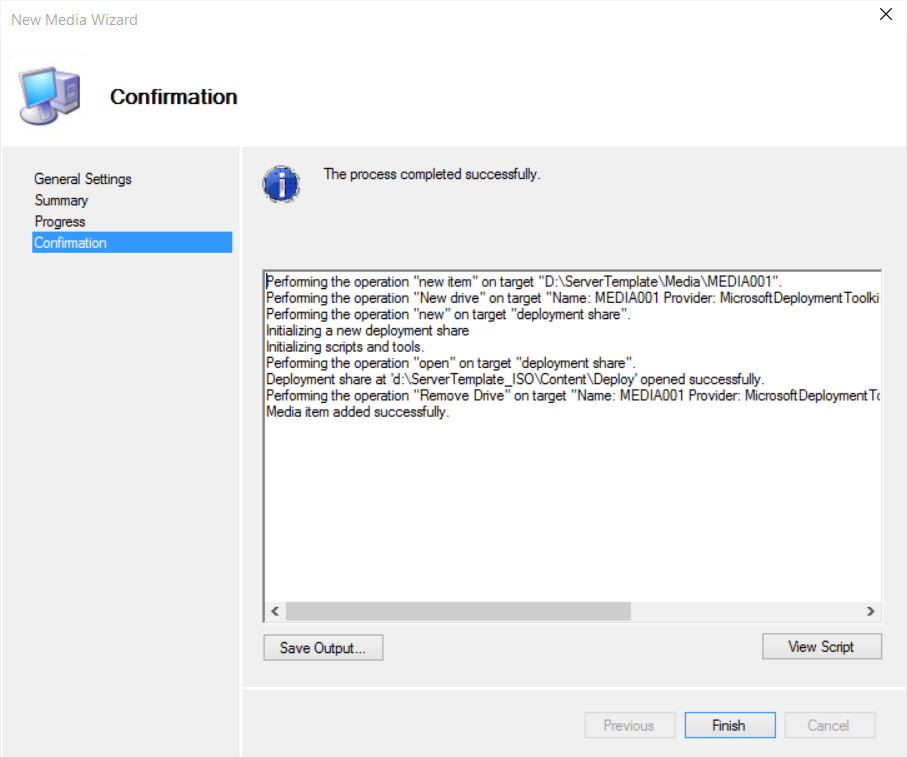

Click Finish

Enter properties for the Media Share

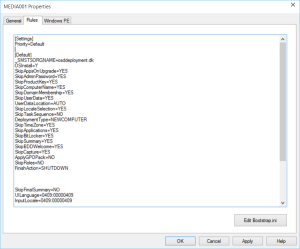

Change the content of Rules to:

[Settings]
Priority=Default

[Default]
_SMSTSORGNAME=osddeployment.dk
OSInstall=Y
SkipAppsOnUpgrade=YES
SkipAdminPassword=YES
SkipProductKey=YES
SkipComputerName=YES
SkipDomainMembership=YES
SkipUserData=YES
UserDataLocation=AUTO
SkipLocaleSelection=YES
SkipTaskSequence=NO
DeploymentType=NEWCOMPUTER
SkipTimeZone=YES
SkipApplications=YES
SkipBitLocker=YES
SkipSummary=YES
SkipBDDWelcome=YES
SkipCapture=YES
ApplyGPOPack=NO
SkipRoles=NO
FinishAction=SHUTDOWN

SkipFinalSummary=NO
UILanguage=0409:00000409
InputLocale=0409:00000409
SystemLocale=0409:00000409
UserLocale=0409:00000409
KeyboardLocale=0406:00000406
DoNotCreateExtraPartition = YES

TimeZone=105
TimeZoneName=Romance Standard Time

JoinWorkgroup=WORKGROUP

And Change the Bootstrap.ini
